Vacuum Heat Treatment

★ Equipped with Two State-of-the-Art Vacuum Heat Treatment Furnaces in Compliance with AMS2750 Aerospace Component Heat Treatment Specification

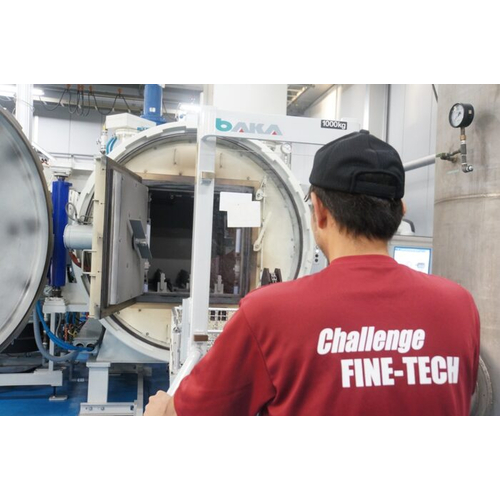

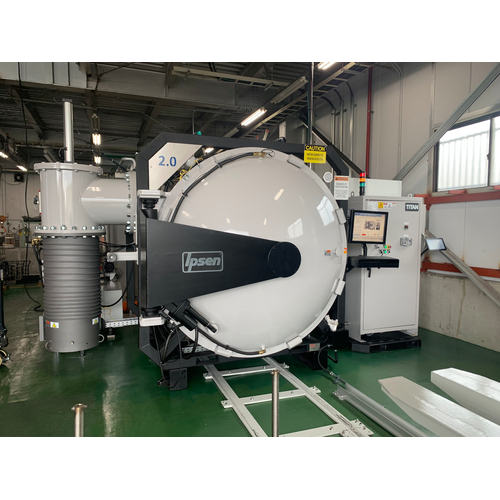

• Ipsen brand horizontal vacuum heat treatment furnaces, designed to comply with the AMS2750 aerospace component heat treatment specification, were installed in 2015 and 2022.
• Maximum temperature: 1350°C
• Furnace temperature uniformity: ±6°C
• Ultimate vacuum level: 10-3 Pa or lower
• Quenching pressure: 2.9 bar
• Atmosphere gases: Nitrogen/Argon/Hydrogen
• Working zone dimensions: 915mm x 915mm x 1220mm
• Maximum load weight: 1350kg

★ Processable Materials and Material Specifications:

• Precipitation-hardening stainless steel (AMS2759/3)
• Austenitic stainless steel (AMS2759/4)
• Martensitic stainless steel (AMS2759/5)
• Nickel/Cobalt alloys (AMS2773/AMS2774)
• Titanium and titanium alloys (AMS2801)
• Permalloy
• Copper and copper alloys

★ Capable of Processing Large Moldings to Precision Components in Small Batches:

• With a total of eight vacuum heat treatment furnaces, including the two latest models, we can accommodate small batch processing from heavy-duty molds to single punches.
• Cooling options include forced cooling with nitrogen/argon or oil cooling, allowing for versatility across various steel types.

★ Short Lead Time Support:

• Our production process design is tailored to meet the demanding requirements of short lead time production for molds, offering a minimum processing time of one day.

☆ For detailed information, including pricing, please contact us to discuss your heat treatment requirements.
